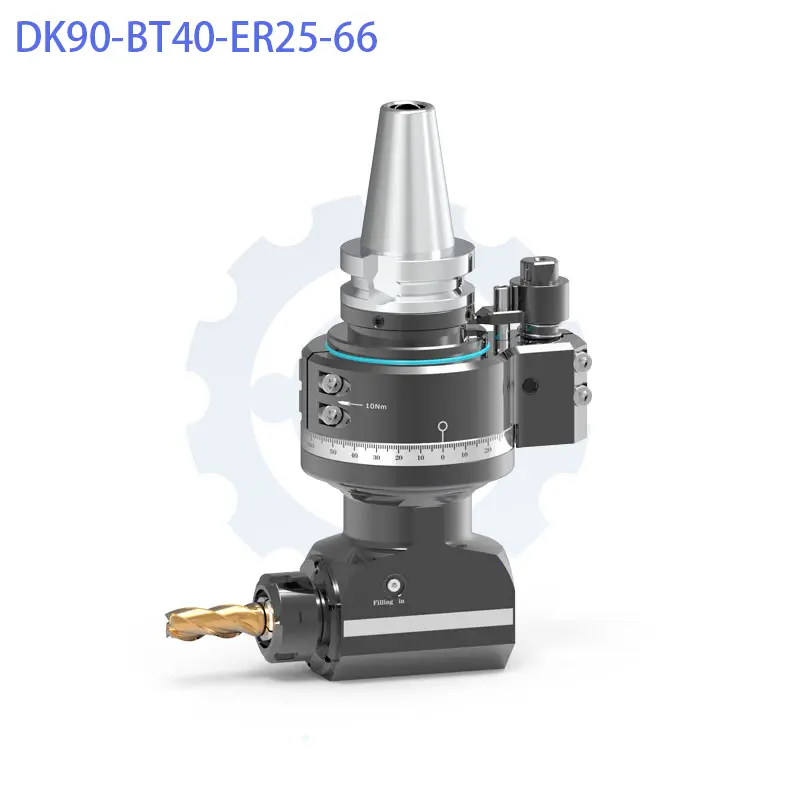

Dual Output 90° Right Angle Head (DK90-BT40-2X Series)

Key Technical Features and Material Standards

• Opposed Dual Spindle Output (180° Configuration): Built with two collinear spindle outputs on opposite sides of the housing. This double-ended drive mechanism supports ER collet clamping (ER16/ER25) or F25 face milling arbor adapters for disc cutters.
• Dual Rotational Direction Options: Available in standard CW-CW dual rotation or specialized Left: CW-CW / Right: CCW-CW gear train configurations (DK90-BT40-ER25-2X-125), giving programmers full flexibility when running right-hand vs. left-hand cutting tools.
• Heavy-Duty Monoblock Casing: Cast from high-strength structural iron/alloy and subjected to stress-relief heat treatment. The symmetrical monoblock body balances radial cutting forces during double-sided milling.
• Gleason Precision Ground Bevel Gears: Internal gearing utilizes Gleason ground spiral bevel gears in 20CrMnTi Alloy Steel. Carburized and quenched to HRC 58-62 and ground to ISO Grade 4 precision, ensuring gear transmission backlash ≤ 15 arcmin and noise ≤ 70 dB under full load.
• Preloaded Dual Spindle Bearings: Both output spindles are supported by preloaded, high-precision P4 class angular contact ball bearings (NSK/FAG), maintaining spindle nose runout ≤ 0.005 mm on both output ends.

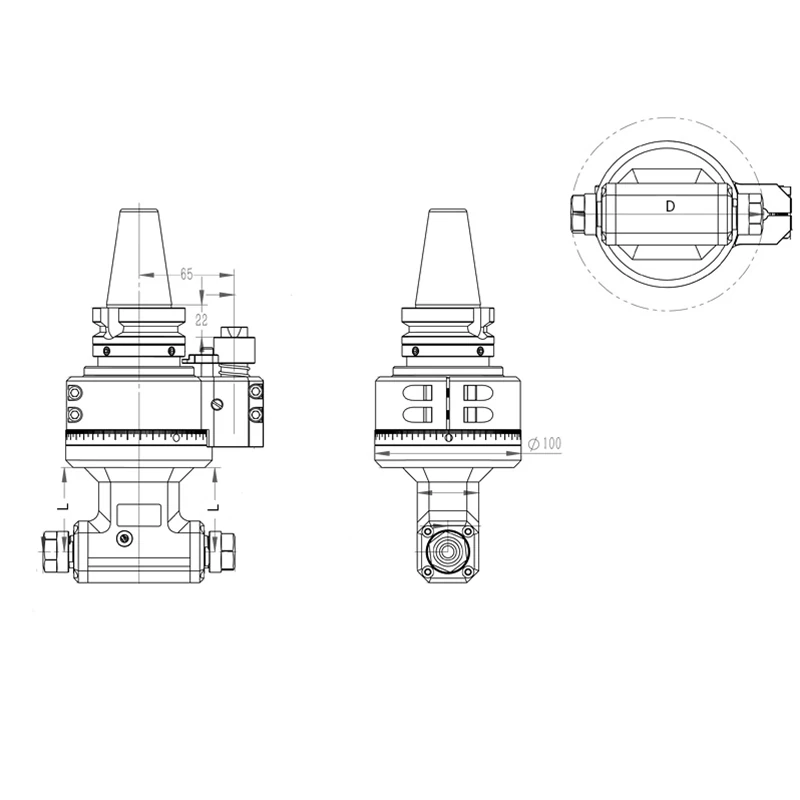

2D/3D Technical Drawings and CAD Download Center

Technical Specifications

Quality Assurance and Testing Standards

Before dispatch, every DK90-BT40-2X series angle head undergoes a 100% Quality Inspection Protocol:

• Dual Spindle Runout Inspection: Runout is measured independently on both output spindle tapers with a high-precision dial indicator, held to ≤ 0.005 mm at the spindle nose and ≤ 0.015 mm at 4D distance on both sides.
• 60-Minute Continuous Run-In: Tested continuously at full rated speed for 60 minutes. Housing temperature rise must remain ≤ 25°C above ambient temperature across both gear outputs.
• Anti-Backlash Alignment: Verified with angular encoders to confirm gear transmission backlash remains ≤ 15 arcminutes on both drive ends.

Target Industries and Industrial Applications

• Automotive Transmission and Engine Housings: Sequential drilling, tapping, and spot-facing on opposite internal faces of gearbox housings and cylinder blocks.
• Hydraulic Valve Blocks and Manifolds: Machining parallel internal ports and valve seats located on opposing inner walls of complex hydraulic manifolds.
• Parallel Slotting and Dual-Side Mold Features: Performing simultaneous or indexing side milling operations on opposite sides of mold plates and slider guides.

CNC Machine Compatibility

Optimized for medium-to-large Vertical Machining Centers (VMC) and Horizontal Machining Centers (HMC). Compatible spindle interfaces include:

• Spindle Standards: BT40 / BBT40 (Face & Taper double contact) / SK40 / HSK63A.
• Typical Machine Brands: Compatible with Haas, Mazak, Okuma, Doosan / DN Solutions, Makino, and Hurco machine tools.

B2B Industrial Packing and Shipping Standards

• Anti-Rust Protection: Coated with heavy-duty anti-rust oil and vacuum-sealed in a high-barrier VCI (Vapor Corrosion Inhibitor) bag accompanied by industrial desiccant packs.
• Shock Absorption: Cradled inside custom-contoured, high-density polyurethane protective foam inserts to isolate both output spindles and the BT40 taper from transport shock.
• Export Outer Casing: Each unit is crated in an ISPM 15-compliant, Fumigation-Free Plywood Wooden Case equipped with quick-locking metal clasps.
• HS Code: 8466.10.10.00 or 8466.30.00.90.
• Lead Time: Standard models are shipped within 5-7 working days. Custom positioning blocks (G-distance) are completed and shipped within 15-20 working days.
• Shipment Ports: Shanghai / Ningbo / Tianjin Port, China.
• Incoterms Supported: FOB, CIF, EXW, FCA, DDU, DDP.
• Express Delivery: Shipped via international air couriers (DHL, FedEx, UPS) with delivery to Europe and North America within 3-5 business days.

Technical Setup and Stop Block Alignment Guide

codeText

       ┌──────────────────────────────────────┐
       │     MACHINE TOOL SPINDLE FACE        │
       └──────────────────┬───────────────────┘
                          │ (Spindle Centerline)
                          │
                          ▼◄──────  G  ──────►[STOP BLOCK]
                       ┌─────┐                    │
                       │Taper│                    │ (Locking Bore)
                       └─────┘                    ▼
                          │               ┌───────────────┐
                     ┌────┴────┐          │ Positioning   │
                     │  Body   ├──────────┤ Pin (D18/D20) │
                     │  Casing │          └───────────────┘
                     └─────────┘

1. Stop Block Mounting: Securely bolt the heavy-duty stop block (retaining block) to the front face of the VMC machine spindle.
2. Verify Center Distance (G-Dimension): Confirm that the center-to-center distance between the machine spindle and positioning pin socket matches your ordered G-Distance (commonly 65mm, 80mm, or 110mm).
3. Indicate Side Runout: Chuck a ground test arbor into one ER output collet, then repeat on the opposite output collet. Sweeping a dial indicator horizontally along both arbors, adjust the stop block’s locking bolts until parallelism is aligned within 0.015 mm per 100mm on both ends.
4. Confirm ATC Clearances: Run a manual tool changer (ATC) test cycle at low speed to verify the automatic arm smoothly grabs, seats, and releases the BT40 taper without physical interference from either output nose.
